Smart Remote Control Insulated Sectional Overhead Door Safety Airbag Sensor Anti-Fall Device 10 Year Service Life
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | DESEO |
| 인증: | CE/ISO9001:2008 |
| 모델 번호: | SD5400 |
결제 및 배송 조건:
| 최소 주문 수량: | 1개 단위 |
|---|---|
| 가격: | USD 800-1100/UNIT |
| 포장 세부 사항: | 전자 부품 보호 기능을 갖춘 합판 패키지 |
| 배달 시간: | 10-25일 |
| 지불 조건: | 전신환, 신용장 |
| 공급 능력: | 달 당 200 유닛 |
|
상세 정보 |
|||
| 재료: | 아연도금강판, 컬러코팅판 | 패널 두께: | 40mm |
|---|---|---|---|
| 패널 폭: | 500mm | 핵심 소재: | 폴리우레탄 폼 48kg/m3 |
| 제어 시스템: | 스마트 리모콘, 전기, 수동 | 안전 기능: | 에어백 센서, 낙하 방지, 파손 방지, 손가락 보호 |
| 모터 보호: | IP54 | 작동 속도: | 0.2-0.4m/s |
| 서비스 수명: | 10년 / 100,000주기 | 전원공급장치: | 380V 50Hz / 220V 50Hz |
| 맥스 차원: | 12m x 8m | 방음: | 24 dB |
| 바람 저항: | 보퍼트 스케일 11, 28m/s | 애플리케이션: | 상업, 산업, 차고, 창고 |
| 강조하다: | Smart remote control insulated sectional door,Overhead door safety airbag sensor,Anti-fall device with warranty |
||
제품 설명

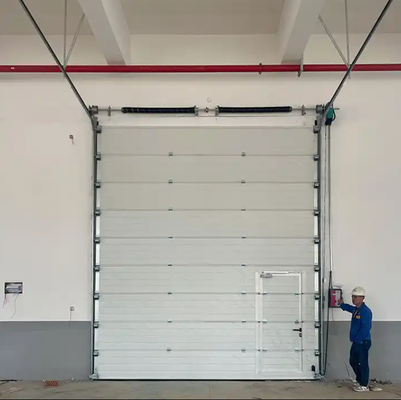

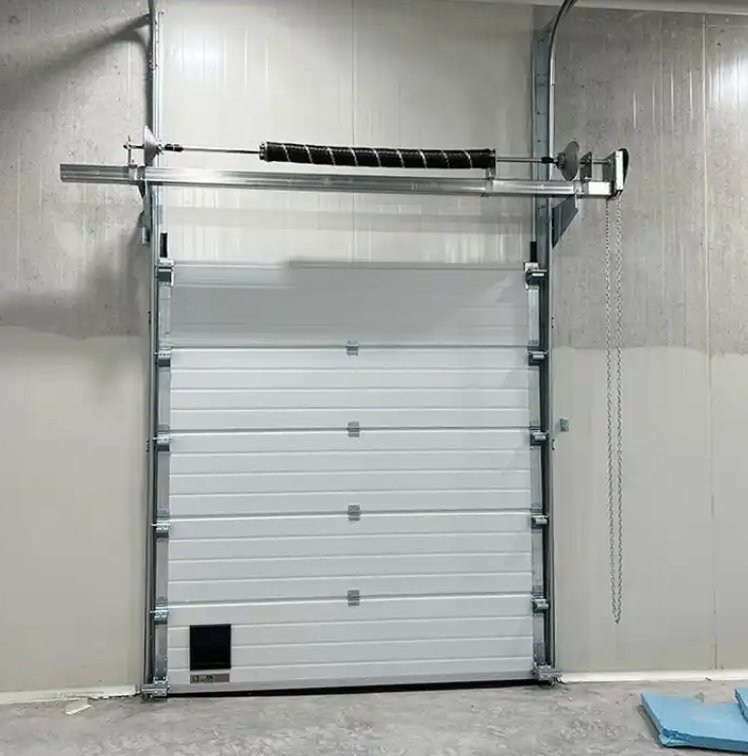

Smart Remote Control Insulated Sectional Overhead Door
The SD5400 smart insulated sectional overhead door combines advanced automation with comprehensive safety systems. Featuring remote control operation, safety airbag obstacle detection, and multiple redundant anti-fall mechanisms, it delivers both convenience and workplace safety compliance.
Key Features
- Smart Multi-Mode Control: Operate via remote control, wall-mounted push button, or manual chain hoist. Route-memorable control system with self-locking during power outages.
- Safety Airbag Sensor: Bottom edge pneumatic sensor detects obstacles instantly and reverses door movement, preventing accidents and equipment damage.
- Triple Anti-Fall Protection: Spring brake device, wire rope anti-break protection, and door anti-fall device ensure maximum operational safety.
- 10-Year Service Life: Engineered for 100,000 open/close cycles with IP54 motor protection class and 24 rpm motor for reliable long-term operation.
- Finger-Protection Design: Pinch-resistant panel joints prevent finger injuries during door operation.
Technical Specifications
| Material | Galvanized Steel, Aluminum Alloy, Color Coating Plate |
| Panel Thickness | 40mm |
| Panel Width | 500mm |
| Core Density | 48kg/m3 Polyurethane Foam |
| Control Methods | Remote Control, Electric Push Button, Manual Chain Hoist |
| Motor Protection Class | IP 54 |
| Motor Speed | 24 rpm |
| Opening Speed | 0.2-0.4m/s |
| Limit Switch | Electronic |
| Safety Systems | Airbag Sensor, Anti-Fall Device, Anti-Break Protection, Finger-Protection |
| Sealing | EPDM Rubber All-Round |
| Max Dimension | 12m x 8m |
| Power Supply | 380V 50Hz / 220V 50Hz |
| Service Life | 10 years / 100,000 cycles |
| Noise Level | ≤60 dB |
Safety Compliance
- CE certified to European Union industrial door safety standards
- Tested and certified by EU-designated Italy Test Institute
- Airbag protection with automatic reverse on obstacle detection
- Self-locking mechanism engages automatically during power failure
- Emergency manual operation via chain hoist
Applications
Ideal for commercial garages, automotive workshops, logistics centers, retail loading bays, and industrial facilities where smart automation and comprehensive safety compliance are essential requirements.
