High Speed 0.4m/s Insulated Sectional Overhead Door 42mm PU Sandwich Panel R-Value 13.73 Energy Efficient
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | DESEO |
| 인증: | CE/ISO9001:2008 |
| 모델 번호: | SD6100 |
결제 및 배송 조건:
| 최소 주문 수량: | 1개 단위 |
|---|---|
| 가격: | USD 850-1200/UNIT |
| 포장 세부 사항: | 보호 필름이 포함된 합판 패키지 |
| 배달 시간: | 10-25일 |
| 지불 조건: | 전신환, 신용장 |
| 공급 능력: | 달 당 200 유닛 |
|
상세 정보 |
|||
| 재료: | 아연 도금 강철, 알루미늄 합금 | 패널 두께: | 42MM |
|---|---|---|---|
| 패널 폭: | 500mm | 핵심 소재: | 폴리우레탄 폼 48kg/m3 |
| 오른쪽 값: | 13.73 | 오프닝 속도: | 0.4m/s |
| 작업: | 전기, 원격, 수동 | 열 보존: | 4.5W/mh |
| 바람 저항: | 보퍼트 스케일 11, 28m/s | 방음: | 24 dB |
| 화재 지체: | 클래스 A | 서비스 수명: | 10년 |
| 맥스 차원: | 12m x 8m | 표면 처리: | 분말 코팅 30um |
| 애플리케이션: | 산업, 창고, 차고, 상업 | ||
| 강조하다: | High Speed 0.4m/s Insulated Sectional Door,42mm PU Sandwich Panel Overhead Door,Energy Efficient R-Value 13.73 Sectional Door |
||
제품 설명

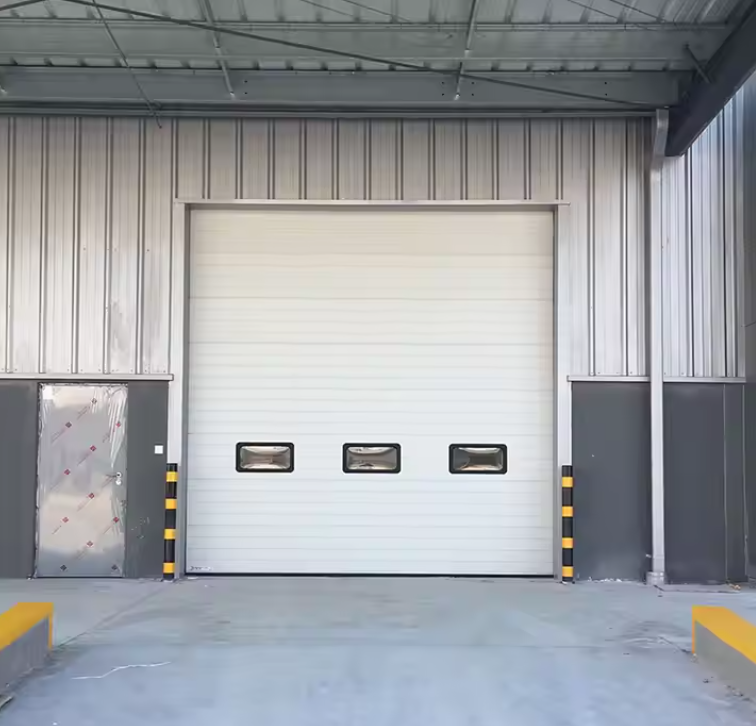

Energy Efficient High Speed Insulated Sectional Overhead Door
The SD6100 insulated sectional overhead door combines rapid 0.4m/s opening speed with industry-leading thermal performance. Designed for high-traffic industrial and commercial environments where both speed and energy efficiency are critical.
Key Features
- Industry-Leading R-Value 13.73: 42mm polyurethane foam sandwich panels deliver exceptional thermal insulation, reducing HVAC costs and maintaining stable indoor temperatures year-round.
- 0.4m/s High Speed Operation: Minimizes air exchange and heat loss during frequent open/close cycles, ideal for busy logistics centers and loading docks.
- 48kg/m3 High Density PU Core: Superior structural rigidity with excellent noise dampening at 24 dB sound insulation.
- Class A Fire Retardation: Meets stringent fire safety standards for industrial facilities.
- Beaufort 11 Wind Resistance: Engineered to withstand wind speeds up to 28m/s for exposed installations.
Technical Specifications
| Material | Galvanized Steel, Aluminum Alloy, Color Coating Plate |
| Panel Thickness | 42mm |
| Panel Width | 500mm |
| Core Density | 48kg/m3 Polyurethane Foam |
| R-Value | 13.73 |
| Opening Speed | 0.2-0.4m/s |
| Guide Rail Thickness | 2mm Galvanized Steel |
| Surface Treatment | Powder Coating 30um |
| Heat Preservation | 4.5W/m.h |
| Sealing | EPDM Rubber All-Round Sealing |
| Max Dimension | 12m x 8m |
| Power Supply | 380V 50Hz / 220V 50Hz |
| Service Life | 10 years / 100,000 cycles |
| Emergency Operation | Manual Hoist Chain |
Safety Systems
- Finger-protection (pinch-resistant) panel joint design
- Airbag safety edge for obstacle detection
- Door anti-fall device
- Wire rope anti-break protection
- Torsion spring balance system with spring brake device
Applications
Ideal for logistics warehouses, distribution centers, manufacturing plants, automotive workshops, and commercial garages where high-traffic access and thermal efficiency are priorities.
